HSM1-6.17.12 Двигатель

Документация

Гибридный синхронный двигатель HSM1-6.17.12: 100-120 kW, 220-320 Nm

цена по запросу

под заказ
BRUSA_B_HSM1BRUSA_A_HSM1-6BRUSA_K_HSM1-6
Производитель Brusa

The HSM1 offers a high and continuous starting torque. From 4'000 rpm on, the motor offers constant performance up to the maximum speed. Therefore it is ideally suited for electric vehicles to achieve a high start acceleration and high top speeds, even without gearbox.

Characteristics

  • High power/weight ratio (2.3 kW/kg)
  • High torque frequency (up to 6.2 Nm/kg)
  • Minimal drag losses
  • Minimal torque fluctuations
  • Constant power over a very high speed range
  • Optimally matched to the motor inverters available
  • Intrinsically safe:
    Induced voltage at max. speed and passive inverter 520 V
  • The HSM1-6.17.12 is optionally available with gearbox GSO1 or double gearbox GDO1.

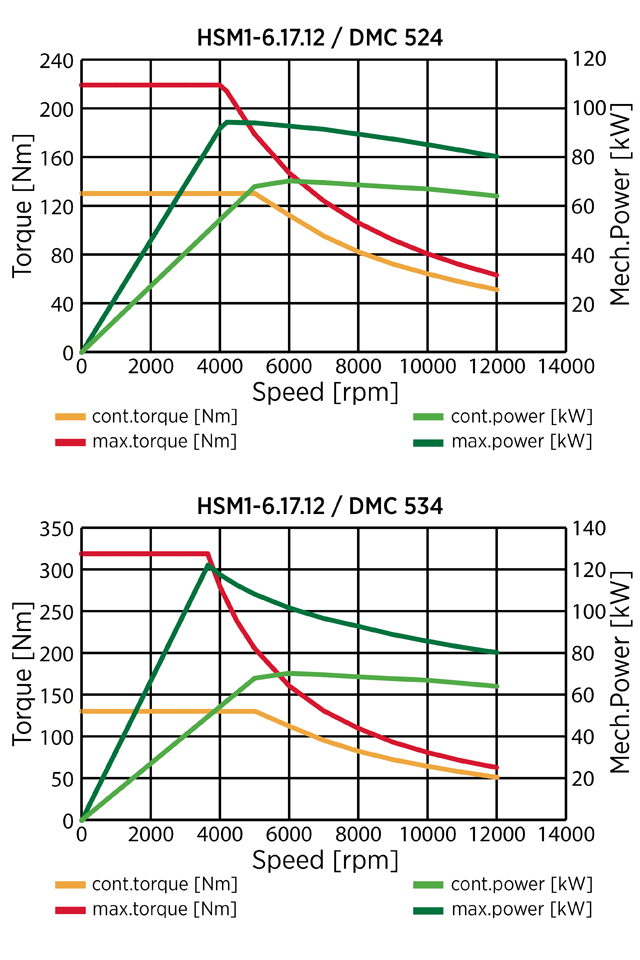

With inverter DMC524 at 400 VDC
Nominal speed 4'200 rpm
Continuous torque 130 Nm
Max. torque (at max. inverter current) 220 Nm
Continuous power 70 kW
Max. power 96 kW
Max. speed 12'000 rpm
Efficiency 95 %
Weight 51.5 kg
With inverter DMC534 at 400 VDC
Nominal speed 3'600 rpm
S1 - torque 130 Nm
Max. torque (at max. inverter current) 320 Nm
Contiuous power 70 kW
Max. power 120 kW
Max. speed 12'000 rpm
Efficiency 95 %
Weight 51.5 kg
