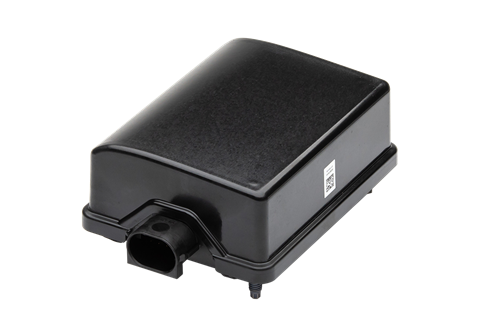

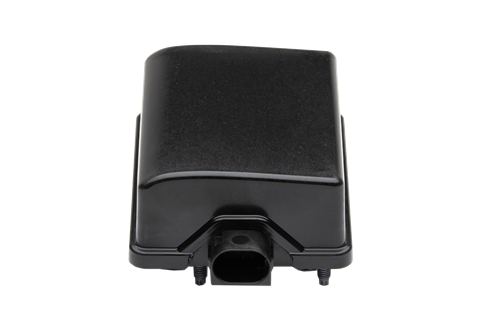

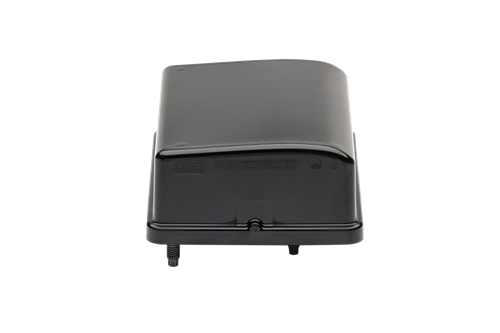

ARS 308 Long Range Radar (Far field radar sensor) 77 GHz

цена по запросу

под заказ
CES_ARS3-A_01CES_ARS3-A_02CES_ARS3-A_03CES_ARS3-A_04chassis-safety-radarsramp-protection
Производитель Continental

Safe - reliable - robust – very small design

Continental offers a new type of radar sensor, the ARS 308-21, as a possible adaptation in different application.

Measuring procedure

The rugged ARS 308-21 sensor from Continental measures independent the distance and velocity (Doppler’s principle) to objects without reflector in one measuring cycle due basis of FMCW (Frequency Modulated Continuous Wave) with very fast ramps, with a real time scanning of 15 / sec.. A special feature of the device is the simultaneously measurement of great distances up to 200m, relative velocity and the angle relation between 2 objects.

Typical areas of application

  • Anti-collision protection for vehicles of every description (particul. autonomous)
  • Headway control also for far range (vehicles of every description, particularly autonomous)
  • Area monitoring system for far range, e.g. of hazardous or non-accessible areas
  • Traffic light approximation recognition, classification of objects (app. 90 single targets)
  • Object detection, e.g. in confusing or unclear areas
  • Unremarkable object detection by affix a protection cover before it

Advantages

  • Fast and safe: The ARS 308 dispels with the apparent contradiction between excellent great Measuring performance and a high degree of operational safety. The rugged ARS 308 radar sensor is capable of determining the distance to an object in real time scanning and dependent on the driving speed a possible risk of collision.
  • Reliable: The ARS 308 radar sensor is fail-safe and able to recognize troubles of the sensor and sensor environment and display it automatically.
  • Robust and very small design: By using a radar technology with less complex measuring principle and the development and mass production in automotive supply industry, the design › is kept very robust and small.
Radar operating frequency band   76...77 GHz (license industry expected app. 2011)
Transmission capacity average <10 mW

Mains power supply
at 12 V DC / 24 V DC +8.0 V...27 V DC / +8,0 V...34 V DC
Power consumption at 12 V DC / 24 V DC 7 W at 14 V DC / 7 W at 28 V DC

Power consumption

with heater
maximum 35 W at 14 V / maximum 63 W at 28 V

High system voltage
at 12 V DC
up to 27 V DC without time limit

High system voltage
at 24 V DC up to 36 V DC 5 min., up to 50 V DC 2 min.

Operating-/ storage temperature

-40°C...+85°C / -50°C...+105°C
Shock
mechanical
50 g
Vibration mechanical
20 m/s2 peak at 10 Hz / 0.14 m/s2 peak at 1000Hz

Protection rating
  IP 6k 9k (dust, high-pressure cleaning)IP 6k7 (10 cm under water), ice-water shock test, salt fog resistant, mixed gas EN 60068-2-60
Displays and connections Comment to natural targets (non-reflector targets)

Monitoring function

self monitoring (fail-safe designed)


Displays

none
Interface multiple party on1 CAN bus possible 1 x CAN 1 - high-speed 500 kbit/s multiple party via CAN ID allocation
Housing Comment to natural targets (non-reflector targets)

Dimensions / weight
Material

L * W * H (mm) / mass (g)
housing / cover

120 * 90 * 46 / < 500 g
Epoxy resin glass blackcoloured / aluminium Miscellaneous
Miscellaneous

Measuring principle (Doppler‘s principle) in one measuring cycle due basis of FMCW with very fast ramps independent measurement of distance and velocity
Version ARS 308-2 and -2T / sensor for the industry / open CAN protocol - type -2T with internal termination Version ARS 308-2 / sensor high sensitivity / as ARS 308-2, but with app. 20 dB higher sensitivityVersion ARS 308-2C / sensor anti-collision / as ARS 308-2, but with anti-collision parameter Version ARS 308-21 / combined functions / as ARS 308-2, but with combined functionality
Interfaces: The device is fitted with one CAN bus interface as standard. Further interfaces as converter, Software adaption, housing and / or hardware adaption are possible on demand and in case of assumption of costs. The ARS 308 also could be used for complex measuring tasks.
