Drive

DTSO1-097 Одиночная трансмиссия

Документация

Single Drivetrain DTSO1-097

цена по запросу

под заказ
BRUSA_B_DTSO1_097BRUSA_A_DTSO1_097BRUSA_K_HSM1-12
Производитель Brusa

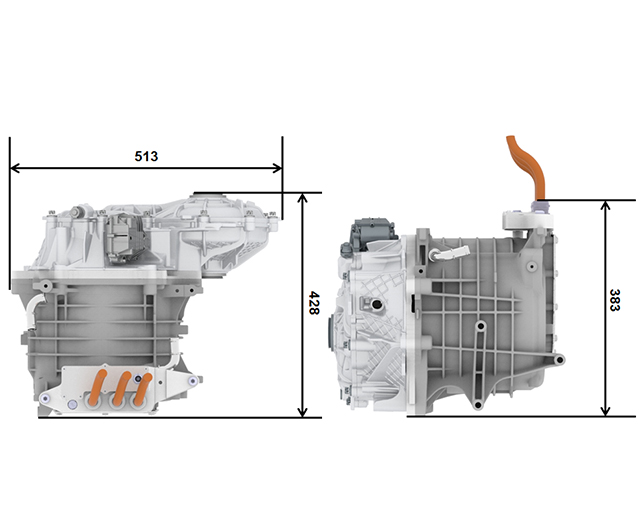

The BRUSA Offset Traction Drive DTSO1-097 is a compact motor-gearbox unit. Due to the high quality serial production the set is available in large quantities. The DTSO1-097 fit s perfect for passenger cars and light duty vehicles. By applying it to front, rear or both axles, powerful yet sophisticated drivetrains can be achieved.

Type axle drive

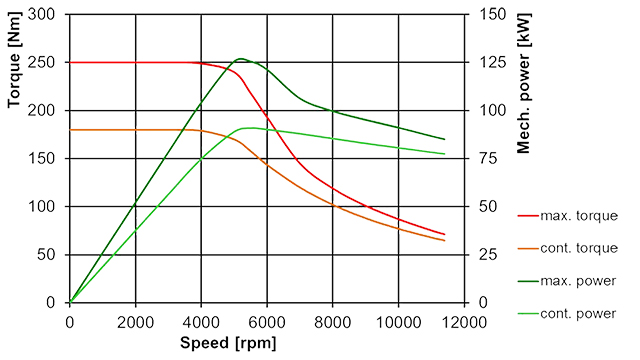

Max. power 125 kW at 360 VDC
Drive torque up to 250 Nm
Gear ratio 1:9.7
Weight 52.0/23.9 kg (motor/gear)
Speed up to 11'400 rpm
Additional functions mechanical differential, parking lock
